The Caterpillar C15 is one of the most commonly specified diesel generators in the 500kW class. Data centers, hospitals, industrial facilities, and rental fleets across North America run on this platform. If you are evaluating a C15 for purchase or want to understand exactly what you are getting, this review covers the specs, the real-world applications, and what you should expect to pay, new and used.
The numbers above are based on the standard open skid configuration. Sound-attenuated models add roughly 1,000–2,000 lbs. Units with sub-base fuel tanks vary significantly in weight depending on tank capacity. 500-gallon and 875-gallon options are common.
What Is the Caterpillar C15?

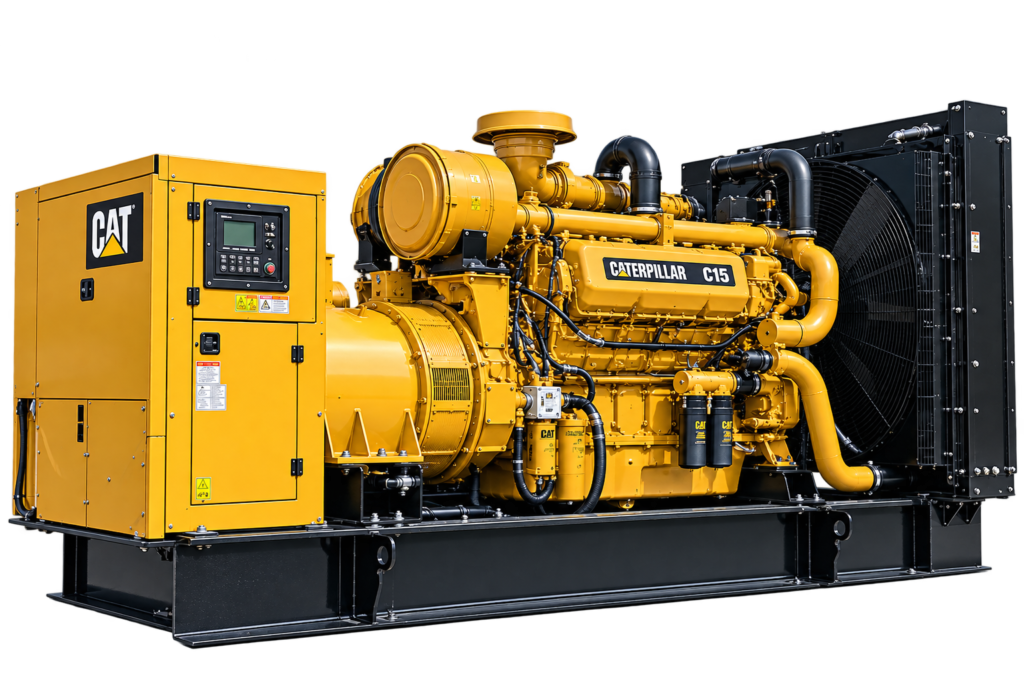

The C15 is a diesel generator set built around Caterpillar’s C15 ACERT inline six-cylinder engine. It has been in production and active commercial deployment for over two decades, making it one of the most mature and field-proven platforms in the 400–550kW range. The engine runs at 1800 RPM and is engineered for heavy-duty continuous and standby service. Caterpillar builds the C15 genset in multiple configurations: open skid, sound-attenuated enclosure, containerized, and trailer-mounted, so it fits into a wide range of installation environments.Caterpillar C15 Generator Specifications
| Specification | Detail |
| Engine | Caterpillar C15 ACERT Diesel |
| Displacement | 15.2 L (928 cu in), inline 6-cylinder |
| Standby Output | 500 kW / 625 kVA |
| Prime Output | 455 kW / 569 kVA |
| Voltage Options | 480/277V, 208/120V, 600V, 3-Phase, 60Hz |
| Rated Speed | 1800 RPM |
| Aspiration | Turbocharged and After-Cooled (ATAAC) |
| Emissions | EPA Tier 2 or Tier 4 Final, depending on build year |
| Fuel Consumption | ~30–35 gal/hr at 100% load |
| Weight | 12,000–14,000 lbs depending on configuration |
| Control Panel | EMCP 4.1, 4.2, or GCCP1.2 depending on the year |
| Typical Warranty | Standard 5-year Caterpillar warranty (new units) |
Standby vs Prime Rating: What the Numbers Mean
Caterpillar rates the C15 at 500kW standby and 455kW prime. These are not interchangeable, and buying on the wrong rating is one of the most common specification mistakes on industrial generator purchases.- Standby (500kW): This is for emergency backup applications where the generator operates infrequently, typically less than 200 hours per year, and never at rated load for more than the duration of an outage. Hospitals, data centers, and commercial buildings use standby-rated generators.
- Prime (455kW): This is for continuous or regular operation where the generator is the primary power source. Construction sites, remote facilities, and prime power applications run on the prime rating. If you run a standby-rated generator at continuous load, you will shorten its service life significantly.
Common Applications for the Cat C15
Data Centers
The C15 is a workhorse in N+1 and 2N data center backup configurations. At 500kW standby, it handles the critical power load for mid-size colocation suites and enterprise data center pods. Its UL2200 listing satisfies most AHJ requirements without additional certification steps.Hospitals and Healthcare Facilities
Healthcare applications demand automatic transfer switch integration and reliable cold-start performance. The C15 meets both requirements. Sound-attenuated configurations keep noise levels manageable in hospital environments where mechanical rooms are close to occupied spaces.Large Commercial Buildings
Office towers, hotels, shopping centers, and educational campuses in the 400–500kW critical load range are standard placements for the C15. The EMCP 4.x control panel offers monitoring and remote alert capability that facilities managers use for routine testing and incident response.Rental Fleets
The C15 has a strong rental history. Its widespread parts availability and the depth of Cat dealer support across North America make it a practical choice for rental companies that need units serviceable anywhere a job takes them.Oil and Gas
Remote wellsite and midstream applications run C15 units in Tier 4 Final configurations for emissions compliance in regulated basins. The high fuel capacity options, 500 and 875-gallon sub-base tanks, provide extended runtime between refueling visits in remote locations.Cat C15 Generator Pricing: New and Used
New Cat C15 Generator Price
A new Caterpillar C15 at 500kW standby in an open-skid, EPA Tier 2 configuration typically sells in the 80,000–120,000 range depending on control panel, transfer switch package, and accessories included. Sound-attenuated enclosures add 10,000–20,000. Sub-base tanks add 5,000–15,000 depending on capacity. If you are sourcing a new C15 through a traditional Cat dealer, expect current lead times of 16–24 weeks. Inventory from secondary market sellers like Power Trade X can put you in front of new-unit inventory significantly faster.Used Cat C15 Generator Price
Pre-owned C15 units vary considerably based on hours, configuration, and emissions compliance:- Under 1,000 hours: 55,000–85,000 depending on year and spec
- 1,000–3,000 hours: 35,000–60,000
- 3,000–6,000 hours: 25,000–45,000
- High-hour units (6,000+): 15,000–30,000 for buyers who can absorb overhaul cost
What to Look For When Buying a Used Cat C15
- Load-bank test documentation: Never buy a used C15 without a current load-bank test showing the unit performed at its rated kW output. A generator that starts easily but fails under load will strand your operation at the worst possible time.
- Service records: Caterpillar’s maintenance intervals are well-documented. Ask for oil change records, coolant service history, and any major repair documentation. Gaps in records are a red flag.
- Coolant condition: C15 cooling systems are reliable but sensitive to neglect. Inspect the coolant for discoloration, oil contamination, and correct freeze-point protection before purchase.
- Control panel functionality: Test all EMCP functions, including start/stop, fault logging, and voltage and frequency readouts. A working control panel tells you the electrical side of the unit has been maintained.
- Emissions compliance: Verify the emissions tier matches your jurisdiction’s requirements. Installing a non-compliant unit in a Tier 4 Final required area creates liability and operational risk.
Should You Buy New or Used?
The answer depends on your application and your timeline. A new C15 with zero hours and a full 5-year warranty makes sense for mission-critical standby applications where no risk of prior wear is acceptable. A load-bank tested pre-owned C15 with documented service history makes sense for rental fleets, secondary backup applications, and any buyer who needs the unit operational before a 16-week lead time allows. Power Trade X stocks new and used Caterpillar C15 generators. Every pre-owned unit is load-bank tested and inspection-verified before listing. Power Trade X: Powering Your Success We buy, sell, consign, and source diesel generators and air compressors nationwide. Call 888-769-3780 or visit powertradex.com.FAQs
- How much does a Caterpillar C15 generator cost?
- How many kW does a Caterpillar C15 generator produce?
- Is a used Caterpillar C15 generator worth buying?
- What is the difference between a standby and prime-rated Cat C15 generator?
- Where can I buy a new or used Caterpillar C15 generator?
