This new 2023 Caterpillar D1000GC C32 diesel generator delivers 1,000 kW of standby power and 910 kW of prime power. Listed under PTX# N02-G256, this unit has 0 operating hours and is offered at $349,900.

The generator is powered by a Caterpillar C32 diesel engine rated at 1,502 HP at 1,800 RPM and provides 277/480V, three-phase, 60 Hz output. Its equipment includes a sound-attenuated enclosure, a 1,600 Amp main-line circuit breaker, and a 2,100-gallon sub-base fuel tank. This unit carries an EPA Tier 2 emissions classification and is located in Edinburgh, Indiana.

Why Choose This Caterpillar D1000GC Generator?

• 1,000 kW Standby / 910 kW Prime: Provides substantial generating capacity for facilities evaluating large electrical loads.
• New With 0 Listed Hours: A 2023 generator package listed in new condition with 0 operating hours.

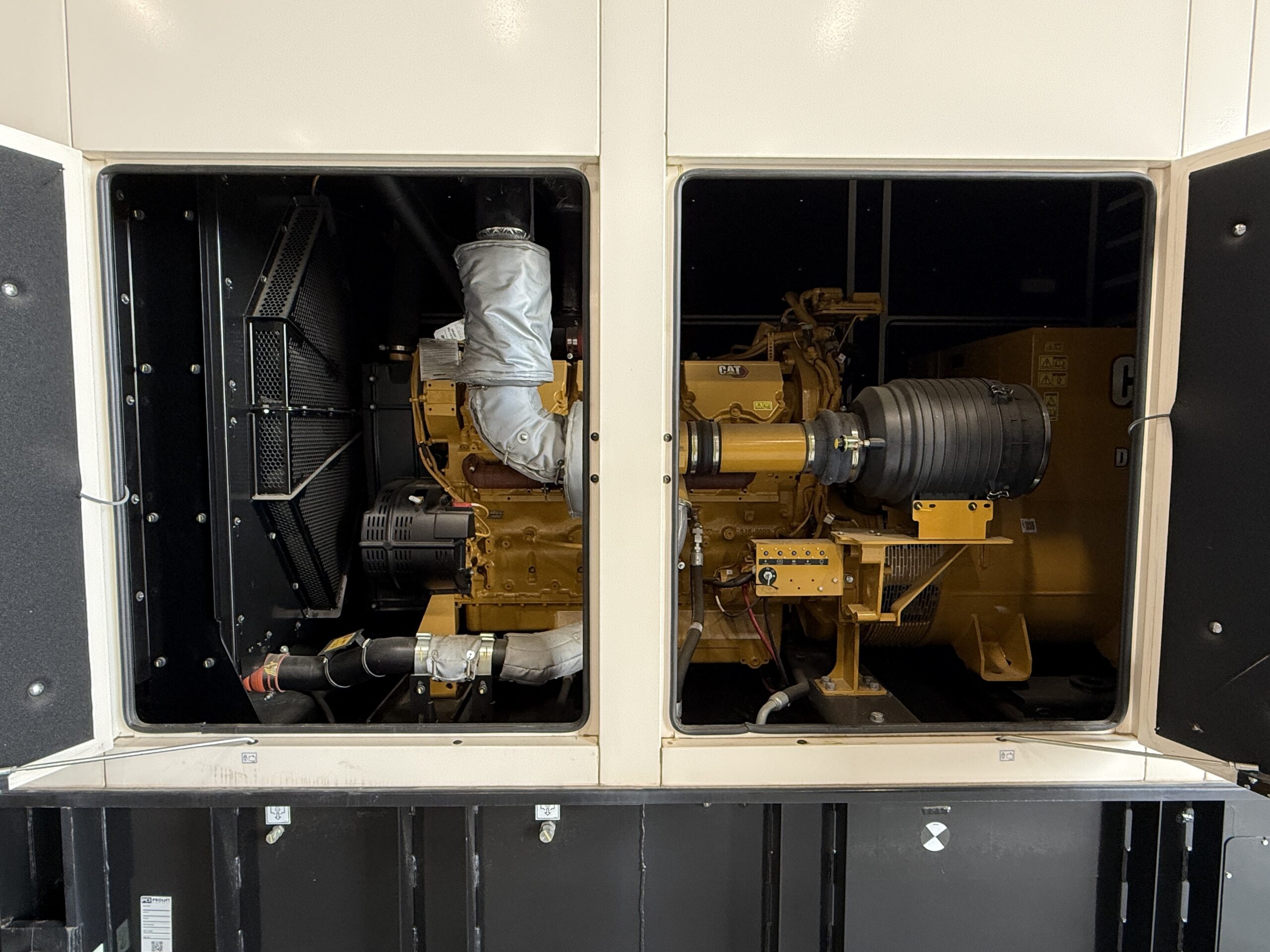

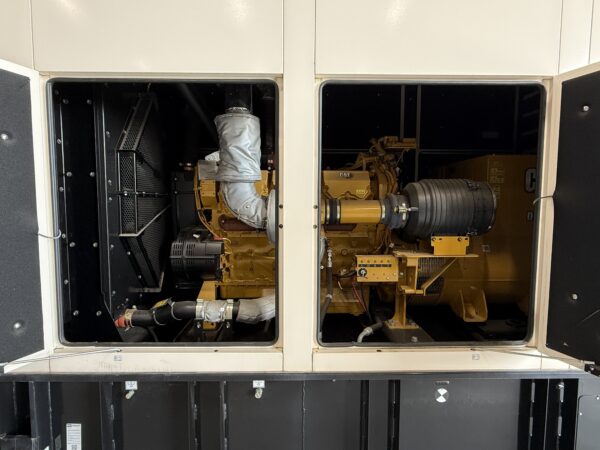

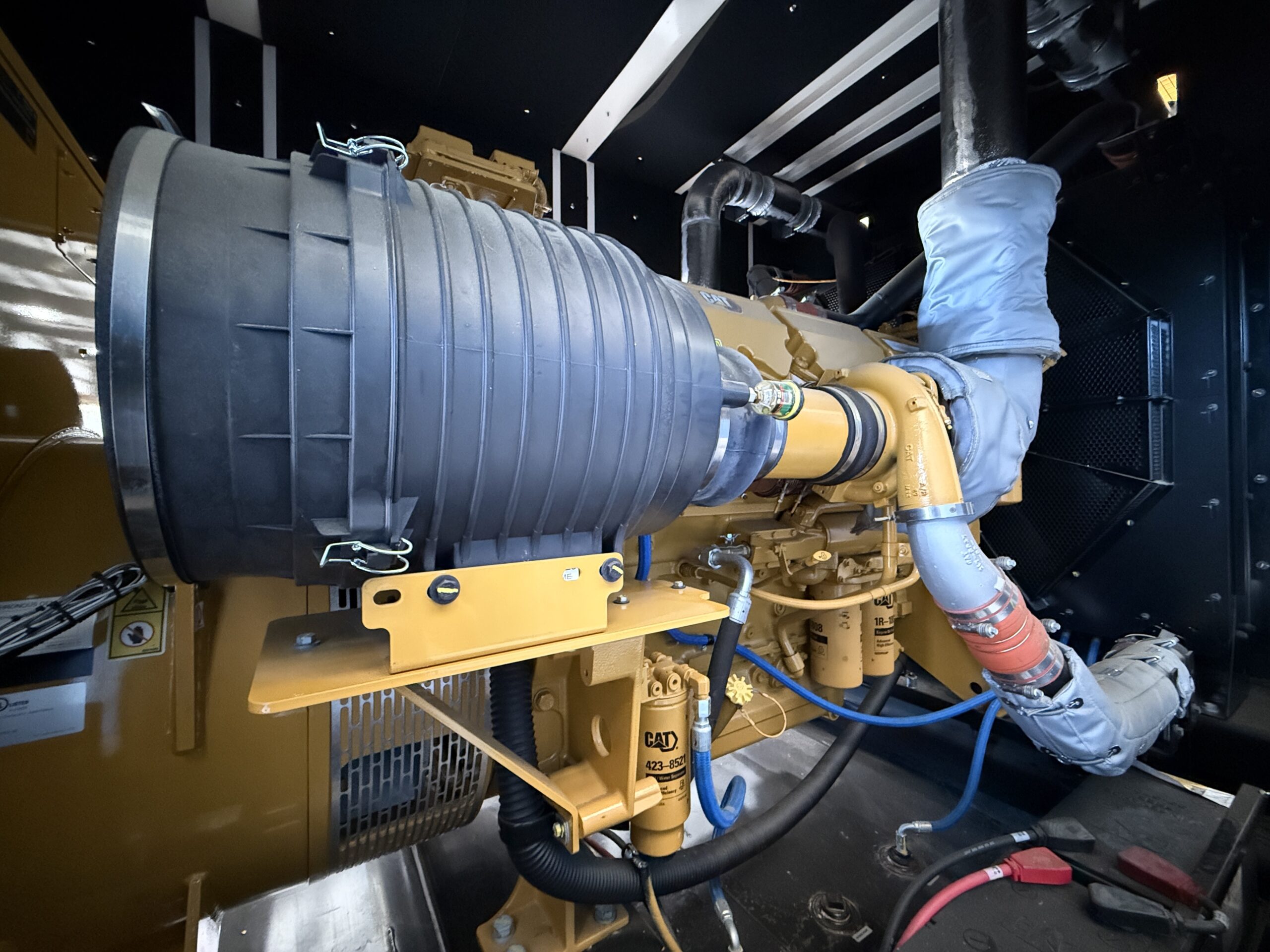

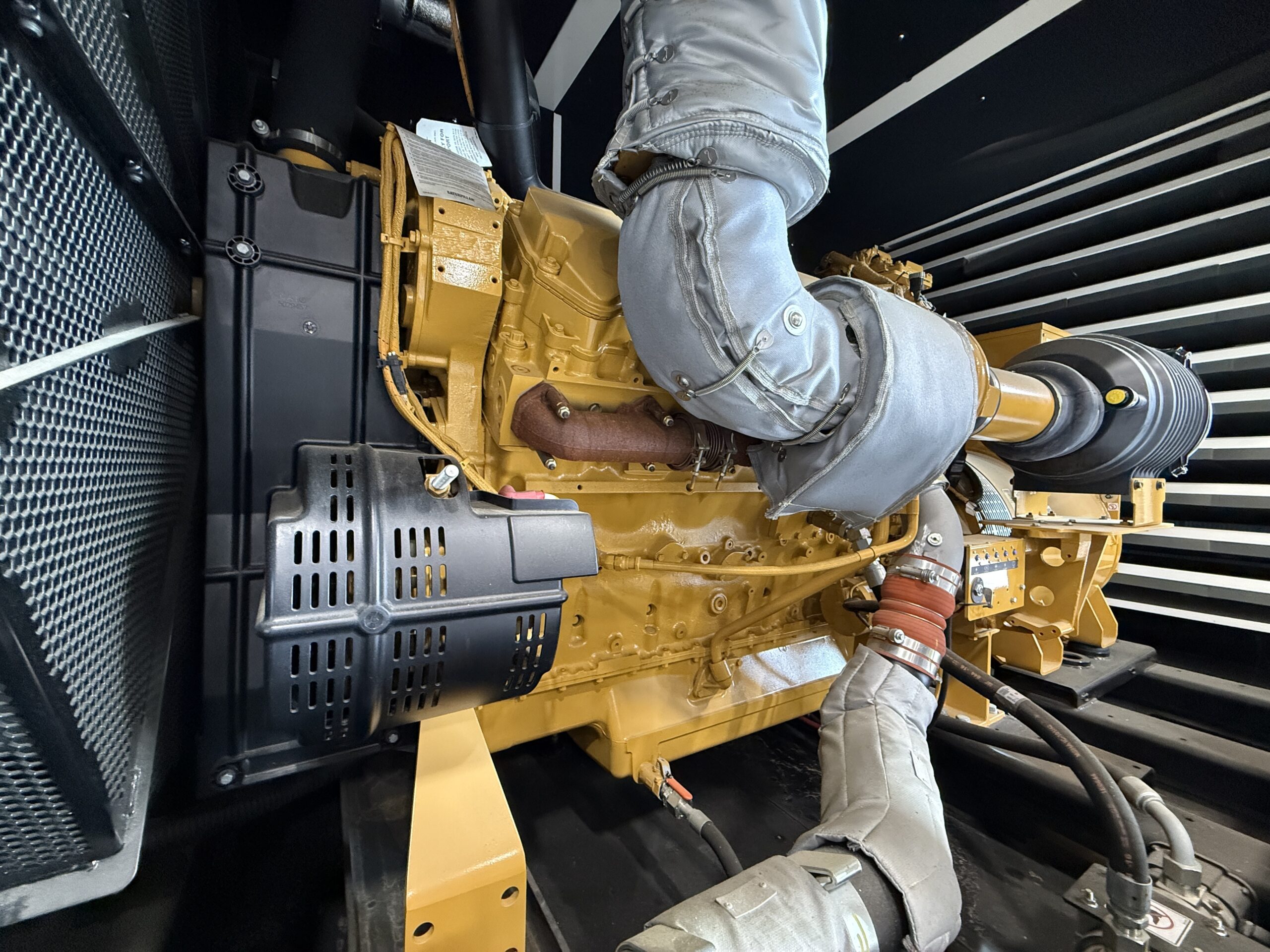

• Caterpillar C32 Engine: Powered by a diesel engine rated at 1,502 HP at 1,800 RPM.
• 277/480V Configuration: Configured for three-phase, 60 Hz applications requiring this voltage arrangement.

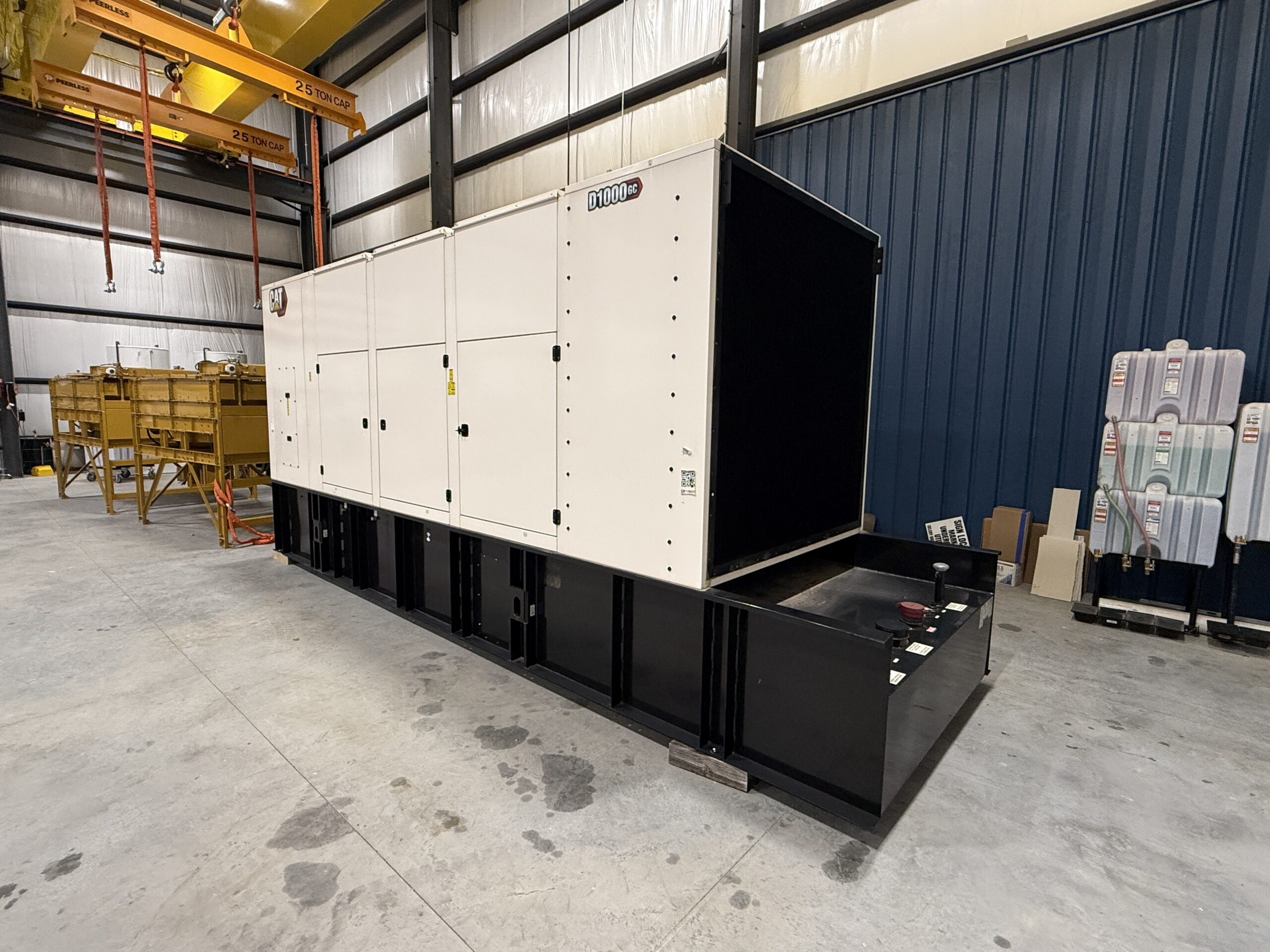

• Sound-Attenuated Enclosure: Helps reduce generator operating noise while enclosing the equipment.
• 2,100-Gallon Fuel Tank: Includes a UL 142 listed sub-base fuel tank with secondary containment and 7-gallon spill containment.
• Controls and Electrical Equipment: Features a GCCP 1.2 digital control panel, permanent magnet generator (PMG), and 1,600 Amp main-line circuit breaker.
• Additional Package Features: UL 2200 listed generator package with an EnerGenius 10 Amp battery charger and coolant heater.

Who Needs This Generator?

The Caterpillar D1000GC 1,000 kW diesel generator is an option for facilities and projects assessing large-capacity standby or prime power. The final selection should account for calculated electrical loads, motor-starting requirements, operating duty, and installation conditions.

• Industrial Facilities: For facilities evaluating generation capacity for equipment and building electrical systems.
• Manufacturing Operations: For projects planning power support for selected production equipment and facility loads.
• Large Commercial Properties: For buildings assessing backup power for essential electrical systems during utility interruptions.
• Warehouses and Distribution Centers: For facilities evaluating power for lighting, equipment, and other selected operational loads.
• Prime Power Projects: The listed 910 kW prime rating provides a capacity basis for prime power applications, subject to the manufacturer’s operating limits.

Buyer Notes

• Warranty: Listed with a CAT factory limited warranty. Confirm its duration, coverage, and eligibility before purchase.
• Start-Up: Start-up is not included.
• Dimensions and Weight: Overall dimensions are 93 inches wide × 300 inches long × 134 inches high. Listed weight is 32,000 lbs.
• Location and Shipping: Offered FOB Edinburgh, Indiana. Include transportation, unloading, placement, and installation in project planning.

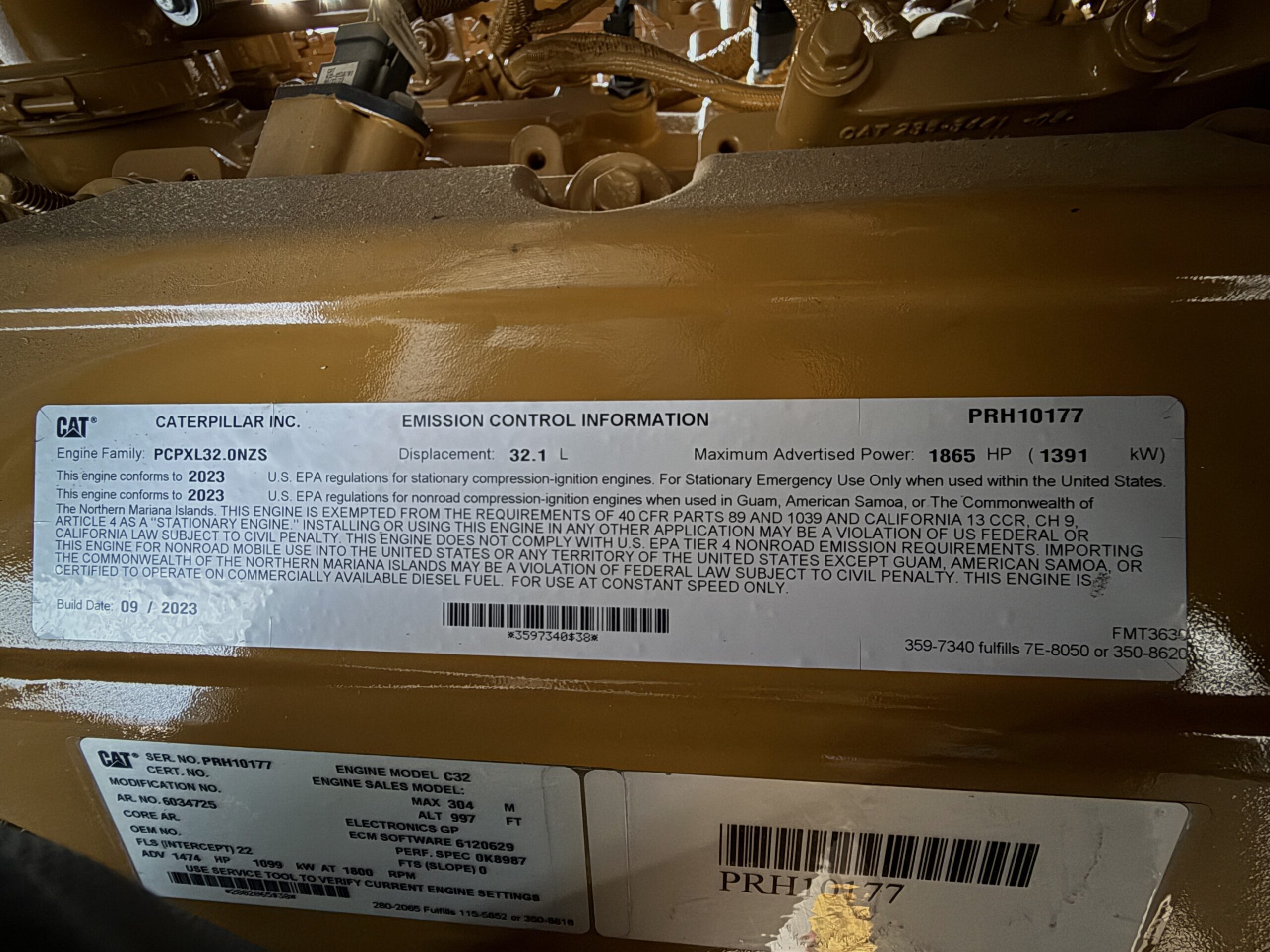

• Emissions: Listed as EPA Tier 2. Confirm suitability for the intended installation location and operating use.

Power Trade X Buying Process

Review the Caterpillar D1000GC specifications against your project’s electrical and installation requirements before ordering. Discuss transportation arrangements, delivery access, unloading requirements, and start-up services with the team.
